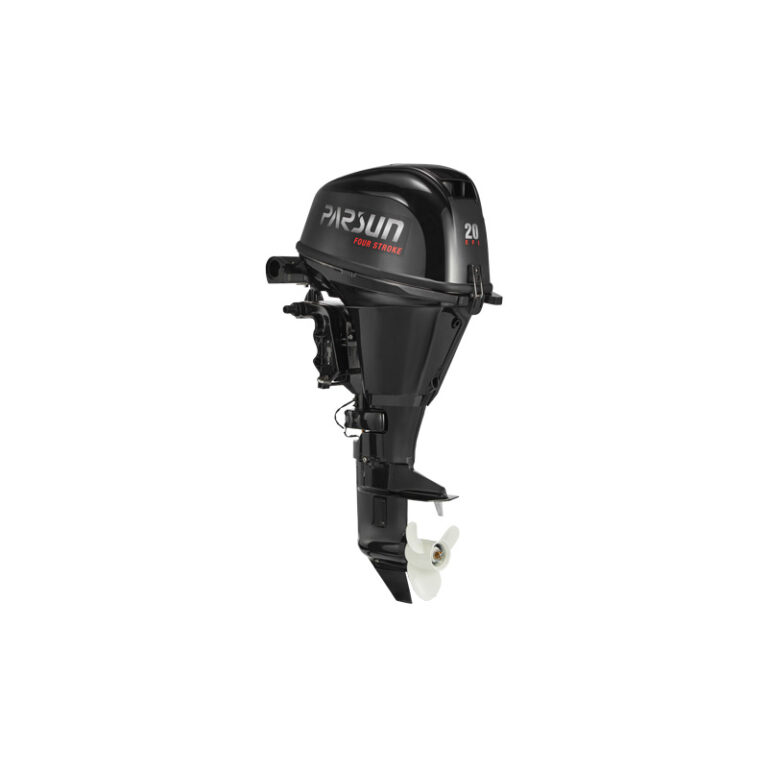

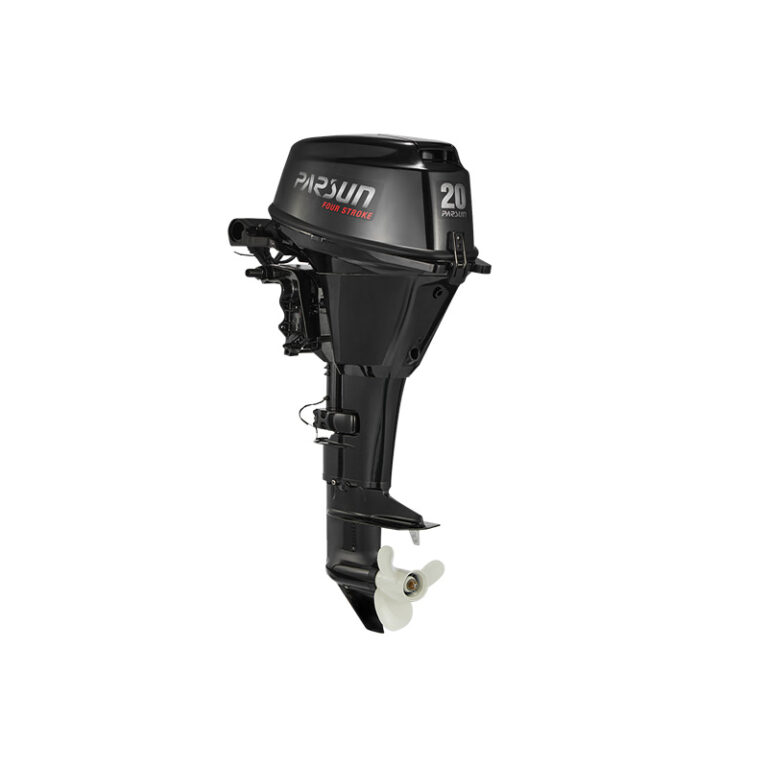

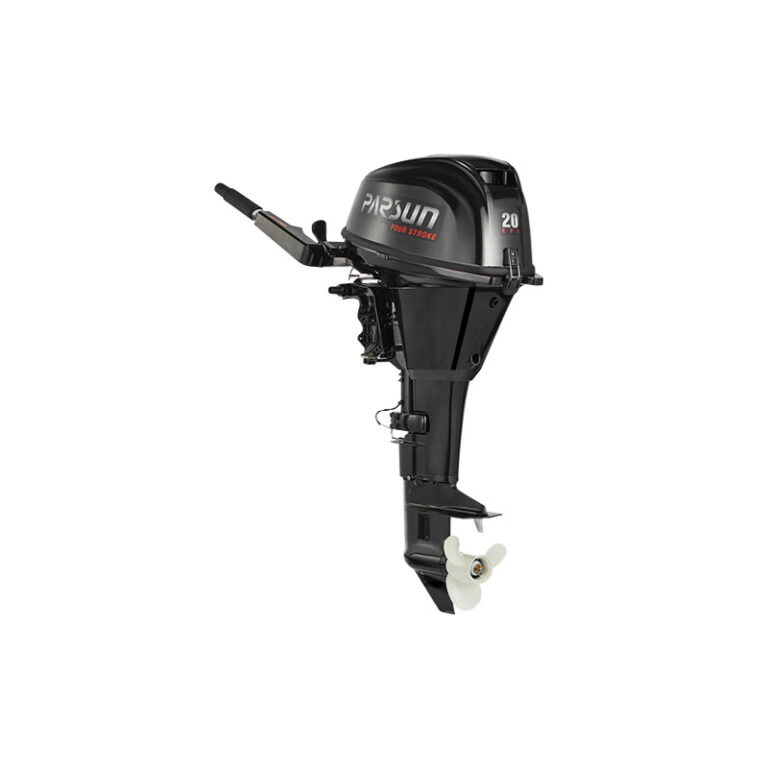

F20A Outboard Motor

parsun-outboard-motor-f20a-4-stroke-20hp-parsun-outboards-usa-1

parsun-outboard-motor-f20a-4-stroke-20hp-parsun-outboards-usa-2

parsun-outboard-motor-f20a-4-stroke-20hp-parsun-outboards-usa-3

parsun-outboard-motor-f20a-4-stroke-20hp-parsun-outboards-usa-4

4-Stroke, 4HP

The F20A series is a compact 4-stroke outboard motor from Parsun, designed with enhanced hull-carrying capacity, making it ideal for users who need to transport cargo or for small groups fishing together. With its robust design, the F20A is perfectly suited as an entry-level motor for small team water sports, particularly for boats ranging from 16 to 23 feet in length. Whether you’re heading out fishing or other water activities, the F20A delivers reliable performance and the power you need to enjoy your time on the water.

Features

Portable, Light & Reliable

Portable – Small size and lightweight, easy to transport, store, carry.
Environmentally friendly – Lower emission, certified by EU CE and US EPA, meeting the legal regulatory requirements, no need to worry about sales and use.
Thanks to the optimization of the engine structure, the four-stroke outboard has lower noise, less vibration and better driving experience.
Easy starting with CDI/TCI ignition system.
Multi-tilt angle, convenient for shallow water driving.

Specifications

Model	F20A
Specs Option	F20ABMS/F20ABML/F20ABWS/F20ABWL/F20AFWS/F20AFWL
Transom Height	15/20in.
Dry Weight	51.7-54.7Kg
Full Rpm Range	5000～6000r/min
Max. Output Power	14kW（20HP）@5000r/min
Idling Rpm Range	1000～1100 r/min
Engine Type	2-cyl. SOHC
Displacement	362 cc
*Bore Stroke**	63.0×58.1 mm
Ignition System	CDI
Fuel Induction System	Carburetor/EFI
Steering System	Tiller/Remote Control
Starting System	Manual start
Gear Shift	F-N-R
Gear Ratio	2.08
Trim & Tilt System	Manual
Fuel Tank Capacity	24L
Max. Fuel Consumption	6.9L/h
Engine Oil Capacity	1.6L
Gear Oil Capacity	250cc
Propeller Options	3-8″or 3-10″or 3-11″ or 3-12″

Parameter Description:

The initial letter “T” means “Two Stroke”.
B=Back Control (Tiller handle)
M=Manual start
S=Short shaft

Technical Superiority

Parsun’s 4-stroke outboards are built to go further, offering superior fuel efficiency, ultra-low emissions, and whisper-quiet operation. Designed to thrive in tough environments, they are easy to maintain and keep you focused on your adventures, not on engine upkeep.

Trust and Credibility

Every Parsun motor is built to the highest standards of quality and environmental responsibility. With EPA, CE, ISO 9001, and ISO 14001 certifications, you can trust that our motors deliver reliable, clean power on every journey.

EPA and CE Certified

Parsun motors are certified for environmentally friendly performance and meet international safety standards.

ISO 9001 and ISO 14001 Certified

With ISO 9001 for quality management and ISO 14001 for environmental responsibility, Parsun ensures top-tier production standards.

Global User Base

With a global presence in over 100 countries, Parsun outboards have earned the trust of boaters around the world.
